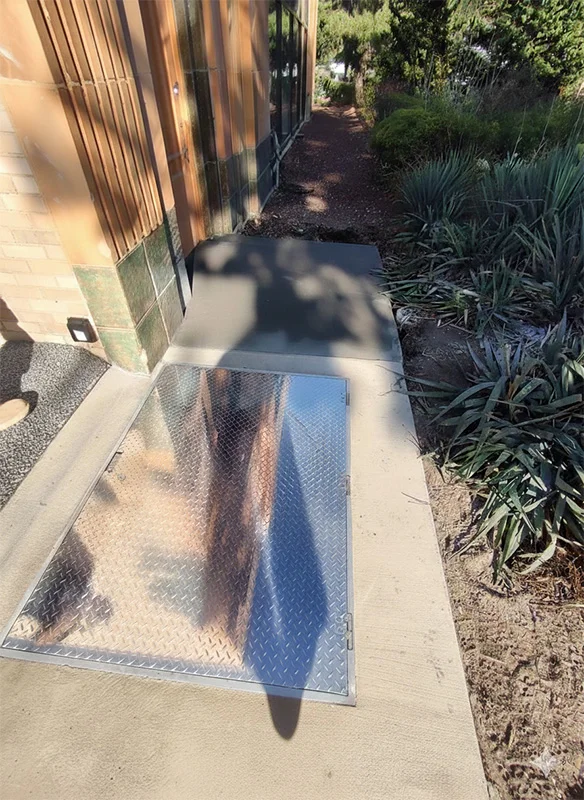

Aluminum sidewalk doors are most commonly found in commercial and industrial settings, such as restaurants, retail stores, and warehouses. Steelway’s lightweight aluminum sidewalk doors feature a locking mechanism for additional security. These allow for easy movement of people and products.
We have been serving the Continental United States and manufacturing our products in the U.S.A. since 1963! We install Steelway aluminum sidewalk doors to offer you a new entry point into your home or business.
Enhance your property with an additional entrance. Contact Steelway Cellar Doors today at +1-877-553-2610.
1/4": Diamond Plate Door Panels, 1/4” Angle Iron Frame, All Welded Seams Ground Smooth, Primer and Finish Coat of Paint, Additional Locking and Safety Options
Steelway use 1/2” x 1“ bar stock with a stainless steel 3/8” hinge pin for rugged durability even in the most demanding commercial applications.
Our strong 3” x 3” x 1/4” angle iron frame is welded to our exact dimensions and all the seams are ground smooth for the correct fit and a professional finish that will last for decades.
All Steelway Diamond Plate Doors have a solid smooth aluminum handle on the right door for easy pull up and no maintenance. We use our recessed Steelway handle whenever possible.
Keeping your access secure is as easy as specifying where you want your padlock tabs. Just tell your salesperson what your locking needs are and we will solve your problem.
If this is new construction, we can weld #4 rebar studs under the frame to make the unit is permanently secure.
We understand that not all Aluminum Sidewalk doors have to be custom made so we have introduced a line of Standard sidewalk doors all designed to fit Standard openings or as a quick solution when you are pouring new sidewalks. All our standard doors support 300lb/s.f. live load and are in stock ready for same day shipping.
| Outside Width | Outside Length | Concrete Opening Dimensions | Door Opening Dimensions |
|---|---|---|---|
| 41 1/4″ | 41 1/4″ | 36″ W x 36″ L | 35 1/4″ W x 35 1/4″ L |
| 53 1/4″ | 53 1/4″ | 48″ W x 48″ L | 47 1/4″ W x 47 1/4″ L |
| 53 1/4″ | 65 1/4″ | 48″ W x 60″ L | 47 1/4″ W x 59 1/4″ L |
SPECIFICATIONS FOR PEDESTRIAN SIDEWALK DOOR
Sidewalk door shall be an aluminum door manufactured by Steelway Cellar Doors LTD, King of Prussia, PA. Door panels will be fabricated of 1/4": aluminum designed and reinforced to support a 300 lb/sf live load with a maximum deflection of 1/150th of span. The frame will be of 3” x 3” x 1/4” angle iron with all seams welded and ground smooth.
Doors will open past vertical and rest on the frame. The right door panel will have an aluminum handle made from 1/4" tread plate. The entire assembly will be welded and come with an anti-corrosion coating on the underside of the aluminum frame.
